Product Summary
The EP20K160EQC240-3 is the first PLD designed with the MultiCore architecture, which combines the strengths of LUT based and productterm-based devices with an enhanced memory structure. LUT based logic provides optimized performance and efficiency for data-path, registerintensive, mathematical, or digital signal processing (DSP) designs. Product-term-based logic is optimized for complex combinatorial paths, such as complex state machines. LUT and product term based logic combined with memory functions and a wide variety of MegaCore and AMPP functions make the EP20K160EQC240-3 device architecture uniquely suited for system on a programmable chip designs. Applications historically requiring a combination of LUT, product term, and memory based device can now be integrated into one APEX 20K device.
Parametrics
Absolute maximum ratings: (1)Supply voltage With respect to ground, VCCINT: -0.5 to 3.6V; (2)Supply voltage With respect to ground, VCCIO: -0.5 to 4.6V; (3)DC input voltage, VI: -2.0 to 5.75V; (4)DC output current, per pin, IOUT: -25 to 25mA; (5)Storage temperature No bias, TSTG: -65 to 150℃; (6)TAMB Ambient temperature Under bias -65 135℃; (7)Junction temperature PQFP, RQFP, TQFP, and BGA packages, under bias, TJ: 135℃; (8)Ceramic PGA packages, under bias: 150℃.
Features
Features: (1)MultiCoreTM architecture integrating look-up table (LUT) logic, product-term logic, and embedded memory; (2)LUT logic used for register-intensive functions; (3)Embedded system block (ESB) used to implement memory functions, including first-in first-out (FIFO) buffers, dual-port; (4)RAM, and content-addressable memory (CAM); (5)ESB implementation of product-term logic used for combinatorial-intensive functions; (6)30,000 to 1.5 million typical gates; (7)Up to 51,840 logic elements (LEs); (8)Up to 442,368 RAM bits that can be used without reducing available logic; (9)Up to 3,456 product-term-based macrocells.

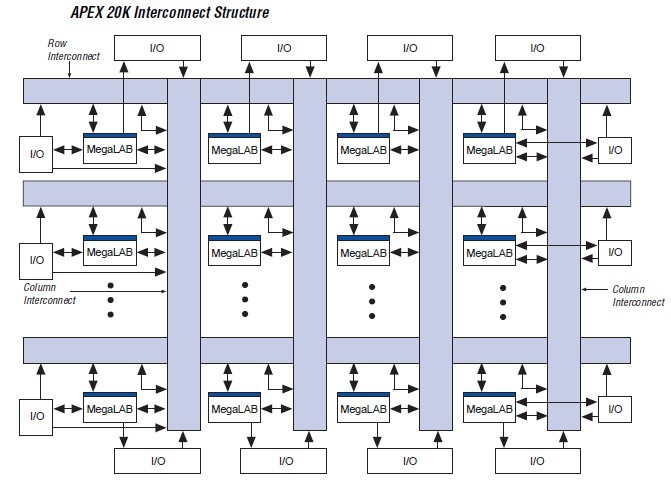

Diagrams
 |
