Product Summary

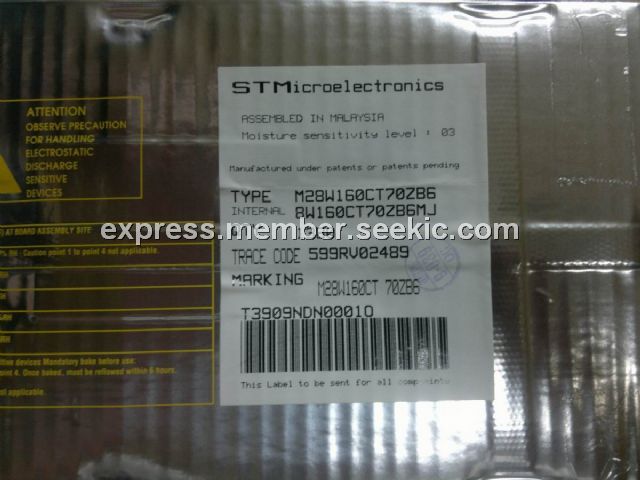

The M28W160CT70ZB6 is a 16 Mbit (1 Mbit x 16) non-vol-atile Flash memory that can be erased electrically at the block level and programmed in-system on a Word-by-Word basis.
Parametrics
Absolute maximum ratings: (1)Ambient Operating Temperature:-40℃ to 85℃; (2)Temperature Under Bias:-40℃ to 125℃; (3)Storage Temperature:-55℃ to 155℃; (4)Input or Output Voltage:-0.6V to VDDQ+0.6V; (5)Supply Voltage:-0.6V to 4.1V; (6)Program Voltage:-0.6V to 13V.
Features
Features: (1)access time: 70, 85, 90,100ns; (2)programming time:10μs typical, Double Word Programming Option ; (3)common flash interface:64 bit Security Code; (4)memory blocks:Parameter Blocks (Top or Bottom location),Main Blocks; (5)block locking:All blocks locked at Power Up,Any combination of blocks can be locked, WP for Block Lock-Down ; (6)automatic stand-by mode; (7)program and erase suspend; (8)100,000 program/erase cycles per block ; (9)ecopack packages available.

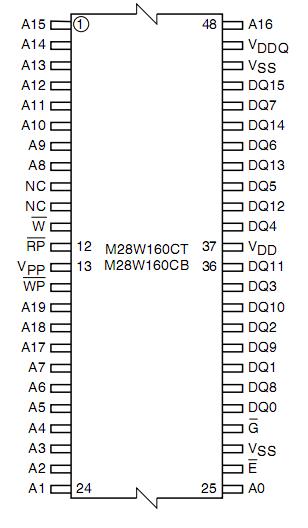

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 M28W160CT70ZB6 |
STMicroelectronics |
Flash 16M (1Mx16) 70ns |
Data Sheet |
Negotiable |
|
||||
|
M28W160CT70ZB6T |
STMicroelectronics |
Flash 16M (1Mx16) 70ns |
Data Sheet |
Negotiable |
|
||||
