Product Summary

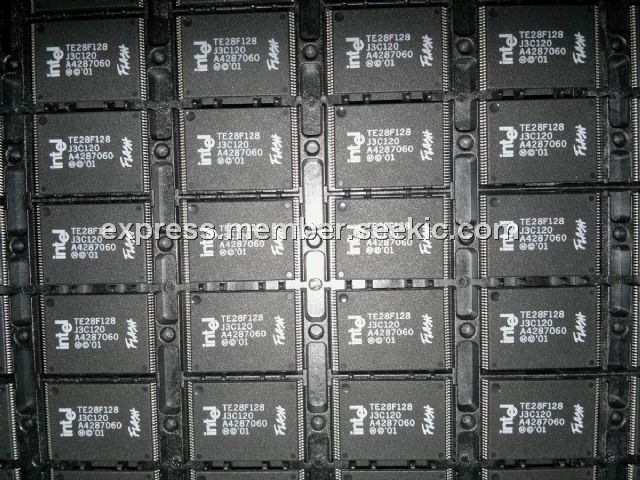

The TE28F128J3C-120 is a Intel StrataFlash memory which is available in three package types. Each density of the J3C is supported on both 64-ball Easy BGA and 56-lead Thin Small Outline Package (TSOP) packages. A 48-ball VF BGA package is available on 32 and 64Mbit devices.
Parametrics
Absolute maximum ratings: (1)Temperature under Bias Extended: –40℃ to +85℃; (2)Storage Temperature: –65℃ to +125℃ ; (3)Voltage On Any signal: –2.0V to +5.0V; (4)Output Short Circuit Current: 100mA.
Features
Features: (1)110/115/120/150 ns Initial Access Speed; (2)125 ns Initial Access Speed (256 Mbit density only); (3)25 ns Asynchronous Page-Mode Reads; (4)30 ns Asynchronous Page-Mode Reads (256Mbit density only); (5)32-Byte Write Buffer; (6)6.8 μs per byte effective programming time; (7)Program and Erase suspend support; (8)Flash Data Integrator (FDI), Common Flash Interface (CFI) Compatible; (9)128-bit Protection Register; (10)64-bit Unique Device Identifier; (11)64-bit User Programmable OTP Cells; (12)Absolute Protection with VPEN= GND; (13)Individual Block Locking; (14)Block Erase/Program Lockout during Power Transitions; (15)Multi-Level Cell Technology: High Density at Low Cost; (16)High-Density Symmetrical 128-Kbyte Blocks.
Diagrams
 |
