Product Summary

The MAX391CSE+T is a precision, quad, single-pole/single-throw (SPST) analog switch. It offers low leakage(100pA max) and fast switching speeds (tON ≤ 130ns, tOFF ≤ 75ns).

Parametrics

Absolute maximum ratings: (1)Voltage Referenced to V-: V+:-0.3V to +17V, GND:-0.3V to +17V, GND:-0.3V to (V+ + 0.3V); (2)VIN_, VCOM_, VNC_, VNO_ :V- to V+; (3)Current (any terminal):30mA; (4)Peak Current, COM_, NO_, NC_(pulsed at 1ms, 10% duty cycle max) :100mA; (5)ESD per Method 3015.7:> 2000V; (6)Storage Temperature Range:-65℃ to +150℃; (7)Lead Temperature (soldering, 10s):+300℃.

Features

Features: (1)Low On-Resistance, 20Ω Typical; (2)Guaranteed On-Resistance Match Between Channels, < 2Ω; (3)Guaranteed On-Resistance Flatness Over Signal Range, 4Ω Max; (4)Guaranteed Charge Injection, < 5pC; (5)Improved Leakage Over Temperature,< 2.5nA at +85℃; (6)Electrostatic Discharge > 2000V per Method 3015.7 ; (7)Single-Supply Operation (+3V to +15V); (8)Bipolar-Supply Operation (±3V to ±8V); (9)Low Power Consumption, < 1μW; (10)TTL/CMOS-Logic Compatible.

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

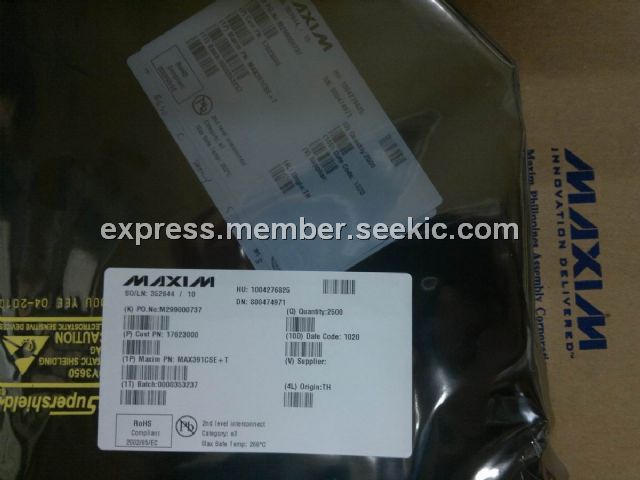

MAX391CSE+T
MAX391CSE+T
Maxim Integrated Products
Analog Switch ICs Precision Quad SPST Analog Switch
Data Sheet
0-2085: $1.25
2085-2500: $1.25
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MAX3000E
MAX3000E
Other

Data Sheet
Negotiable
MAX3000EEBP-T
MAX3000EEBP-T
Maxim Integrated Products
Translation - Voltage Levels
Data Sheet
Negotiable
MAX3000EEUP
MAX3000EEUP
Maxim Integrated Products
Translation - Voltage Levels
Data Sheet
Negotiable
MAX3000EEUP+
MAX3000EEUP+
Maxim Integrated Products
Translation - Voltage Levels 1.2-5.5V .1uA 35Mbps 8Ch
Data Sheet
0-1: $2.76
1-25: $1.84
25-50: $1.36
50-100: $1.32
MAX3000EEUP+T
MAX3000EEUP+T
Maxim Integrated Products
Translation - Voltage Levels 1.2-5.5V .1uA 35Mbps 8Ch
Data Sheet
0-2080: $1.16
2080-2500: $1.16
MAX3000EEUP-T
MAX3000EEUP-T
Maxim Integrated Products
Translation - Voltage Levels
Data Sheet
Negotiable
